White Wax Machine - Innovator of Jewelry 3D Printer

White wax machine is a new type of photosensitive resin continuous 3D printer. White wax combines the ease of casting of wax and the ease of molding of resin. At the same time, the printing turnover rate is extremely high and the surface is very smooth, which provides a strong guarantee for the mass production of jewelry 3D printing.

A

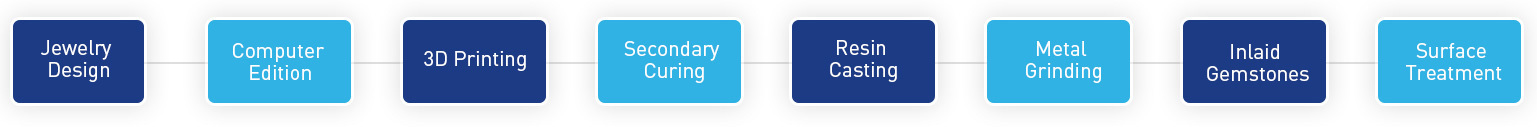

Manufacturing Process



r






DLP-3D printing technology uses digital light to process the projected image to cure liquid photosensitive resin, which can be imaged by a single pixel, with high printing resolution, smoother surface, and less subsequent processing work. DLP printing technology directly forms the surface during printing, so the molding speed is not affected by the number of parts, each layer can be printed at one time, and then accumulated layer by layer.

In the jewelry industry, DLP technology is one of the most widely used and mature technologies. In recent years, the resolution of DLP has been continuously improved, and the performance of light-curable resins has also been continuously upgraded. The castable and disappearing properties of resins have been continuously improved. The strength and toughness of materials can print particularly fine structures. For direct pressing of plastic molds.

Continuous 3D printing technology is a process that simplifies printing into a continuous "growth" of layerless designs, eliminating the discrete steps of previous 3D printing methods. At present, the relatively mature continuous 3D printing technology mainly refers to the continuous curing of the printed part when it is pulled out from the resin, and the printing speed is improved by continuous pulling up. The technology was first proposed in the CLIP patent of US-based Carbon3D, which launched the L and M series of continuous liquid interface printing devices. The cDLM continuous printing technology proposed by the German company Envisiontec has launched the ONE series of equipment. The BPM continuous printing system proposed by China Totustec Company, and launched the 3D Plus UR series equipment.

The white wax machine is a new type of photosensitive resin continuous 3D printer. It is named because the material uses a mixture of high content wax and photosensitive resin, which turns white after post-processing. White wax combines the ease of casting of wax and the ease of molding of resin, and has unique advantages, providing technical support for the mass production of jewelry. The continuous 3D printer 4KL150UR and other models developed by TotusTec can not only greatly improve the printing speed, but also effectively reduce the layers in the stacking manufacturing process. process. High-wax white wax material CW2000 is currently the most reliable white wax material on the market and can be widely used in mass production.

3D printing technology has reshaped the jewelry design and manufacturing industry. 3D printing can realize the complexity and diversity of jewelry design structure, perfectly fit the designer's design, greatly reduce the time, error defects and loss of manual printing, at the same time, it can ensure the high precision of the model, reduce the production cost, and greatly reduce the production cost. to improve production efficiency. Different 3D printing materials are suitable for different jewelry manufacturing processes. Whether it is casting wax materials, resin materials or precious metal materials, they have been widely used. The advancement of technology has improved the production method of jewelry, which in turn has promoted the development of 3D printing technology. Ascension and rapid development. In the future, 3D printers will become an essential tool for jewelry designers, and will also become a tool for jewelry manufacturing factories to achieve mass production.
